Anonymous
spatial intelligence
in real time.
.png)
.png)
.png)
.jpg)
%20(1).png)
Butlr API
The Butlr API hosts real-time and historical people sensing data for your spaces. Our core JSON REST API returns headcount, occupancy, location and temperature data. MQTT is available for real time alerting.

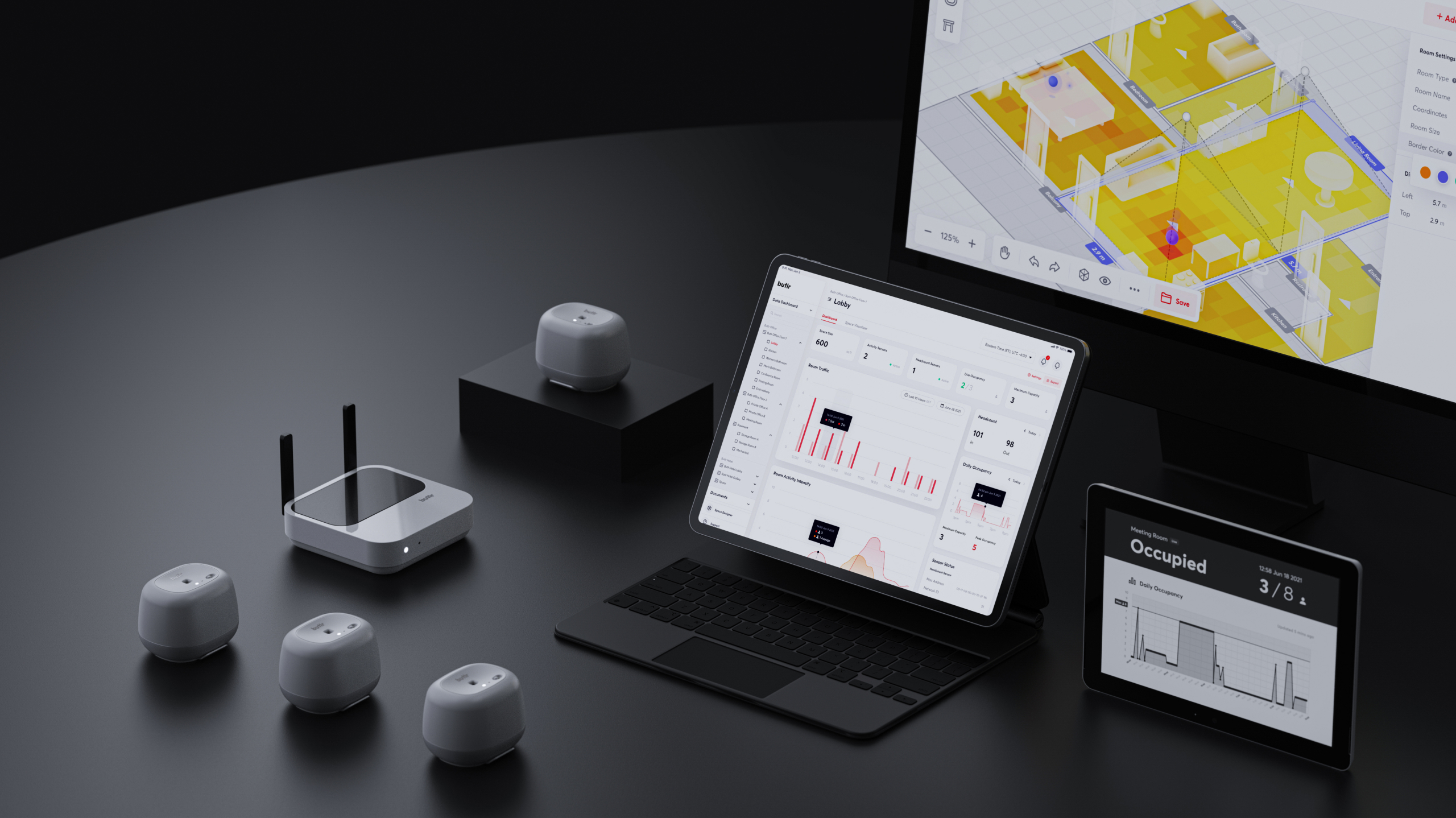

Heatic Hardware
.png)
Heatic Sensor
Breakthrough wireless sensor using body heat to detect presence, occupancy and activity. Heatic sensors form a low power mesh network and communicate with Hive.
.png)
Hive
Compact gateway device for data backhaul to the cloud via Ethernet or Wifi. Plugs into AC power.
Attentive technology
designed to serve you.
%20(1).png)
95+% accuracy, indoor coordinate accuracy at +/- 30 cm, surface temperature reading at +/- 0.5 C.
.svg)
Our GDPR-compliant Heatic sensors use body heat to detect presence. We go where cameras can’t go. PII not possible.
.svg)
Our magnetically mounted sensors run on a 2+ year battery life. No need for expensive cabling and complicated networking equipment on site.
.svg)
With an update rate up to 7 fps, Heatic sensors provide real-time information in addition to historical data.
.svg)
Installs in minutes. Each Heatic sensor can cover up to 200 square feet depending on ceiling height.
.svg)
Systems integrators and developers can use our open APIs to integrate Heatic data into third party applications.
.svg)
No wearables needed. Our line of sight based sensors operate in all lighting conditions save direct sunlight.
.svg)
From AI learning energy-conserving patterns, to cloud updates with the latest features and upgrades, Heatic sensors are smart and getting smarter.
.svg)
Our core API returns people count, occupancy, location and temperature data via JSON or REST.
.png)
.png)
.png)
Got Questions?
.jpg)
Our current sensor has a 60º field of view. The coverage area of each sensor depends on its mounting height; for example, at a mounting height of 3.1 meters / 10.2 ft , the coverage area is 3.6 x 3.6 meters / 11.8 ft x 11.8 ft.
The positional accuracy of our current sensor is at +/- 30 cm (1ft), Headcount accuracy 95+% *, surface temperature reading at +/- 0.5 C.
*measured at standard indoor environment at 10ft installation height.
Our sensor can measure human body temperature at close range. However, when installed overhead for spatial monitoring, the accuracy of the body temperature fluctuates as the sensor does not point to body parts where the individual's thermal signal is the strongest.
Depending on the height and subsequent coverage, one single sensor can detect as many as six (6) distinct people standing simultaneously next to each other in a 5ft x 5ft square*. Since a Butlr Network can extend indefinitely in indoor spaces, the number of people the entire network can detect at the same time is equally indefinite and relative to the number of sensors a network consists of.
*measured at standard indoor environment at 10ft installation height.
Yes, this feature is expected in Q4 2021.
No - our algorithm is designed to work with multiple installation scenarios including overlapping sensor coverage. Simply put, our sensors automatically stitch up together to form a seamless heatmap for continuous trajectories.
Passive Infrared Sensors (PIR) allow you to sense motion, almost always used to detect whether a human has moved in or out of the sensors range. The difference between our Heatic Sensor and a PIR sensor is that Heatic Sensor can detect all sorts of presence, and is not limited to people in motion. Our Heatic Sensors can successfully detect people sleeping, sitting and lying down and their location in the space— a PIR sensor cannot. Finally, the Heatic sensors perform significantly better in more complicated spatial scenarios with significantly higher accuracy than PIR technology.
Each Hive can support up to 12 sensors while maintaining real-time update rates.
There are no limits when it comes to quantity of detected objects or covered area; a Butlr sensor network can extend indefinitely in indoor spaces, provided that we deploy the needed amount of Heatic sensors and Hives.
Heatic Hive and Sensors will form a mesh network when successfully connected. The network coverage will extend with more sensors added to the network. We recommend deploying the first sensor within 10 meters (35 feet) of the hive. The new sensors added to the network should be 10 meters from any devices (sensors or hive) in the network.
Our starter kit price includes the sensors, software and support for 12 months from the time of receipt.
You will be invoiced or your card will automatically be charged $280 after the first 12 months for ongoing access to Butlr software and support.
There is no need to return as the equipment is yours. If you have issues, however, email orders@butlr.io or contact your Butlr representative.
Contact orders@butlr.io if you wish to cancel your annual subscription.
Your kit purchase comes with an automatic 12 month subscription. We don’t offer refunds for subscriptions less than that at this time.
Our sensors capture only low-resolution, thermal data. This type of data is inherently non-identifying and non-sensitive. Our sensors do not capture Personally Identifiable Information like personal characteristics, retina scans, voice signatures, or facial geometry.
There are two types of data traveling to our servers: raw sensor data and spatial data. The raw sensor data are low-resolution, thermal information; inherently non-identifying and non-sensitive. The second type, the spatial data, is the information the user provides through the setup app, e.g., location of furniture objects and names of rooms. The system has no way of scanning or acquiring this type of information via the sensors.
Active data (hot storage) are stored for up to three (3) months.
We have an extended policy securing both our time-series and static data, in transit and in storage. Should your legal or technical department wish to learn more about the technical specifications of our security practices, feel free to reach out to us at privacy@butlr.io
